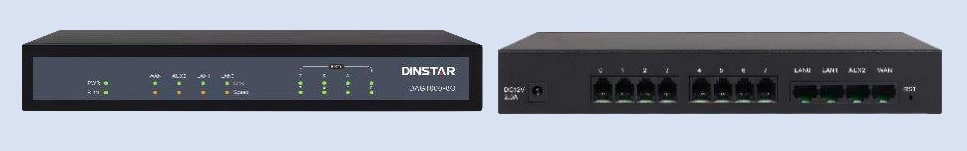

VoIP Gateway Dinstar DAG1000 😯 adalah gateway analog multi-fungsi menawarkan konektivitas tanpa batas antara jaringan telepon berbasis IP dan jaringan analog (POTS) sistem PBX.
VoIP Gateway Dinstar DAG1000 😯 menawarkan 8 port FXO, yang cocok untuk perangkat kecil dan bisnis menengah, pusat panggilan, dan lingkungan multi-lokasi yang memerlukan layanan VoIP.
VoIP Gateway Dinstar DAG1000 4O mendukung protokol SIP standar dan kompatibel dengan platform IMS/NGN terkemuka dan IP berbasis SIP sistem telepon
Topics
Fitur Utama VoIP Gateway Dinstar DAG1000 😯
- Cost effective gateway with 2/4/8 FXO ports
- Fax over IP (T.38 and Pass-Through)
- TR069 and SNMP
- Multiple codecs: G.711A/U,G.723.1,G.729A/B etc.
- Flexible Call Routing and Number Manipulation
- Fully compatible with leading IMS/NGN, SIP based IP telephony system
Fitur VoIP Gateway Dinstar DAG1000 😯
Physical Interfaces
- Capacity: DAG1000-8O, 8 FXO, RJ11
- Ethernet Interfaces:
DAG1000-8O: 1* WAN, 3* LAN,10/100Mbps, RJ-45
FXO
- Connector: RJ11
- FAS
- Caller ID: FSK, DTMF
- Polarity Reversal
- Answer Delay
- Busy Tone Detection
- No Current Detection
- Call Detection: Bellcore Type 1&2, ETSI, DTMF
- Dial Mode: DTMF/Pulse Dialing
- AC/DC Impedance Configuration
Voice & FAX
- Modem/POS
- VLAN 802.1P/802.1Q
- Layer3 QoS and DiffServ
- T.38/Pass-through
- Silence Suppression
- Comfort Noise Generation(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation(G.168), with up to 128ms
- Adaptive (Dynamic) Jitter Buffer
- Programmable Gain Control
- Audio Codec: G.711A/U law, G.723.1, G.729A/B, G.726
- DTMF mode: Signal/RFC2833/INBAND
VoIP
- Protocol: SIP v2.0 (UDP/TCP),RFC3261 SDP,RTP(RFC2833), RFC3262, RFC3263, RFC3264, RFC3265, RFC3515, RFC2976, RFC3311
- SIP Trunk
- SIP TLS/SRTP
- RFC3266 IPv6 in SDP
- RFC2806 TEL URI
- RFC3581 NAT, rport
- Outbound Proxy
- RFC4028 Session Timer
- RTP/RTCP, RFC2198, RFC1889
- DNS SRV/ A Query/NATPR Query
- Early Media/Early Answer
- NAT:STUN, Static/Dynamic NAT
Maintenance
- CDR
- Syslog
- Web/Telnet
- SNMP v1/v2/v3
- TR069, TR181
- Auto Provisioning
- Network Capture
- Configuration Backup/Restore
- Firmware Upgrade via Web
- NTP/Daylight Saving Time
- IVR local Maintenance
- Cloud-based Management
Network
- PPPoE
- DHCP Client
- OpenVPN
- Ping / Tracert
- Static / Dynamic IP
- DHCP Option 66,120,121
- IPv4, TCP, UDP,TFTP, FTP, ARP,RARP, Ping, NTP, SNTP, HTTP/HTTPS, DNS
Software Features
- Port Group
- Action URL
- Digitmap
- Speed Dial
- Web/Telnet ACL
- Routing Rules based Prefixes
- Caller/Called Number Manipulation
Environmental
- Power Supply: 100-240VAC, 50-60 Hz @External Adapter DC12V
- Power Consumption:DAG1000-8O: 20W
- Operating Temperature: 0 ℃ ~ 45 ℃
- Storage Temperature: -20 ℃ ~80 ℃
- Humidity: 10%-90% Non-Condensing
- Dimensions(L/W/H) and Weight: DAG1000-8O: 24215240mm, 1kg
- Compliance: CE, FCC
